First SOTE Test Results for SSI’s ECD215 – 7″ Disc Diffuser

By: Tom Frankel
Post Date: June 11th 2018

Post Tags:

These data are for the ECD215 fine bubble disc diffuser showing a range of SOTE between 7.94%/m and 9.32%/m at airflows from 2.5 Sm3/hr/pc to 0.33 Sm3/hr/pc, at 5m diffuser submergence, maximum diffuser density, and normalized to 1000 mg/l TDS.  We will add the ECD215 test values to SSI CurveGen on the Technology Portal as soon as all of the tests are complete.

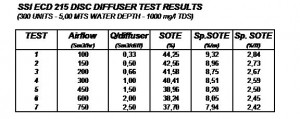

disc diffuser test results

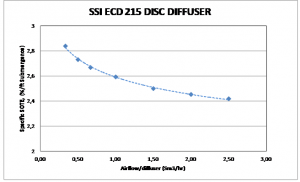

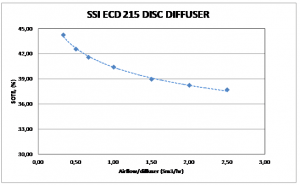

ecd disc diffuser graph ecd disc diffuser graph
