Fine and Coarse Bubble Diffuser Mounts

By: Tom Frankel
Post Date: November 29th 2016

Post Tags:

We offer a wide variety of diffuser mounts.   Below please find some examples of the methods that we use to connect disc diffusers, tube diffusers, and coarse bubble diffusers to pipe.

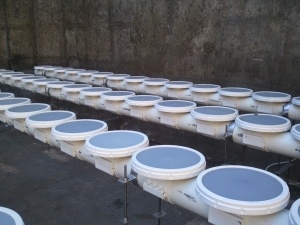

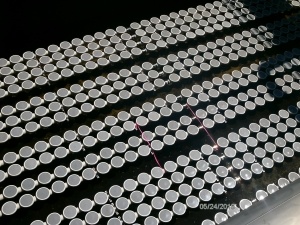

Factory Mounted PODS

Factory Mounted PODS – Disc Diffusers



PODS install quickly

PODS install quickly



Hydrostatically Sealed

PODS – Hydrostatically Sealed





Quick Connect Saddle - Discs

Quick Connect Saddle – Fine Bubble Discs



QC Saddle Mount on SS Piping

QC Saddle Mount on SS Piping – Discs



Quick Connect Saddles - Strong resistance to pullout

Quick Connect Saddles – Strong resistance to pullout



Threaded Service Saddles

Threaded Service Saddles – Disc Diffusers

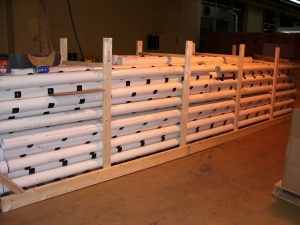

Piping with PVC Grommets factory installed - Disc Diffusers and Coarse Bubble

Piping with PVC Grommets factory installed – Disc Diffusers and Coarse Bubble Diffusers



Grommet Mount - Disc and CB

Grommet Mount – Disc and Coarse Bubble



Coarse Bubble with Grommets

Coarse Bubble with Check Valve & Grommets



Wide Band Coarse Bubble on SS pipe with Gusseted Tees

Wide Band Coarse Bubble on SS pipe with Gusseted Tees



An elbow to accommodate a Wide Band diffuser

An elbow to accommodate a Wide Band diffuser



Snappy Saddle - Tube Diffusers

Snappy Saddle – Tube Diffusers

This is a highly engineered product with contoured support pipe.



Snappy Saddle Tubes - Quick Installation.

Snappy Saddle Tubes – Quick Installation.

Tubes can be provided in a high efficiency or a high capacity configuration.



Nipple Type Tube Diffuser for Square Pipe

Nipple Type Tube Diffusers for Square Pipe

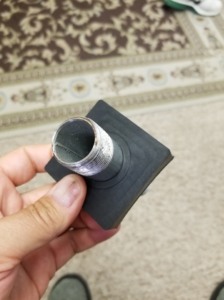

Nipple Type Assembly

Nipple Type Assembly with Flat Gasket Seal

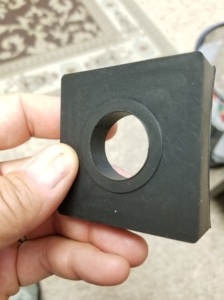

Tube diffuser grommet for round pipe
